Sky-Tech
Glass Floor Skylights are the best choice for project
seeking maximum glass coverage and the highest
light Transmission and low heat gain. Sky-Tech glass floor
incorporate custom sized and shapes into metal frames custom
tailored to each project. Sky-Tech fabricates three
different types of glass floor systems, stainless steel deck
mount to be embedded in to tile floors as low a 1/2 from sub
floor up to 4 for floating tile floors or natural stone
floor, Aluminum curb mount units for IPE floating decks and
module system for glass floor skylights with multiple light
bays and for balconies and bridges. Sky-Tech glass floor
multi layered glass panels are engineered for uniform
live loads of 100 psf. or 300 pound point load in a 3
circle and come in dual glazed and single glazed. Max single
light size of 6' x 6'. Custom sizes can be cut to accommodate radius and other geometric shapes. Glass
is available in a variety of colors. Custom paint color
finishes available to match any color for metal frames.
For frame construction, choose from Aluminum or Stainless
Steel. For both interior and exterior use. Depending on the
size you need for your Sky-Tech glass floor skylight it can
be shipped to you fully glaze ready to set in place and
fasten down. Sky-Tech Glass Floor Skylight Systems have been
time tested and perfected over the last 32 years. |
|
| |
Sky-Tech Glazing
Systems
can furnish your Glass Floor Skylight
needs.
Here are some of the different types of Glass Floor
Skylights.
If you do not see the type of Glass Floor Skylight
or shape feel free to
Contact us. |
|
PRIVATE
RESIDENCE
LOS ANGELES, CA
ARCHITECT: JAMES ROSEN DESIGN LLC
CONTRACTOR:
ET DEVELOPMENT, INC.
DESCRIPTION: ONE 26'-3" x 6'-0" ID.
GLASS FLOOR BRIDGE SKYLIGHT
COMPLETED:
05/24/2021
|
PRIVATE
RESIDENCE
PALO ALTO, CA
ARCHITECT: SDG. ARCHITECT
CONTRACTOR:
BEHRENS-CURRY HOMES
DESCRIPTION: ONE 9'-4" x 20'-8-1/2" ID.
GLASS FLOOR SKYLIGHT
COMPLETED:
03/11/2021
|
PRIVATE
RESIDENCE
SAN FRANCISCO, CA
ARCHITECT: JORAM
S. ALTMAN ARCHITECT
CONTRACTOR: CHRISTOPHER GATE CONSTRUCTION,
INC
DESCRIPTION:
GLASS FLOOR BALCONY SKYLIGHT
COMPLETED:
01/22/2020
|
 |
 |
FLINTRIDGE
PREPARATORY SCHOOL
543 CROWN AVE.,
LA CANADA FLINTRIDGE CALIFORNIA 91011
CONTRACTOR:
GLAZING CONCEPTS, INC.
DESCRIPTION: ONE
TRAPEZOIDAL
GLASS FLOOR SKYLIGHT
COMPLETED:
8/07/2020
|
PRIVATE
RESIDENCE
SANTA MONICA,
CALIFORNIA
ARCHITECT:
JOHN ANDREWS GROUP
CONTRACTOR: STEPHAN CONSTRUCTION, INC.
DESCRIPTION: ONE
3'-8" X 9'-0" STAINLESS STEEL GLASS FLOOR
SKYLIGHT
COMPLETED:
10/13/2019
|
UC. IRVINE MIDDLE
EARTH
557 EAST PELTASON
DR., LAURELIN, TOWER, SUITE 2301, IRVINE
CALIFORNIA 92617
ARCHITECT: MITHUN.
CONTRACTOR:
HENSEL PHELPS
CONSTRUCTION GROUP
DESCRIPTION: EIGHT 6' DIA. GLASS FLOOR
SKYLIGHTS
COMPLETED:
09/13/2019
|
 |
 |
PRIVATE RESIDENCE
DOLPHIN TERRACE, NEWPORT BEACH,
CALIFORNIA 92625
CONTRACTOR: KAZ
INVESTMENT MANAGEMENT
DESCRIPTION:
THREE 5’ x 5’ STAINLESS STEEL
DECK MOUNT
GLASS FLOOR SKYLIGHTS
COMPLETED:
7/29/2019 |
PRIVATE RESIDENCE
DOLPHIN TERRACE, NEWPORT BEACH,
CALIFORNIA 92625
CONTRACTOR: KAZ
INVESTMENT MANAGEMENT
DESCRIPTION: ONE
3’-9" X 10’-3" STAINLESS STEEL
DECK MOUNT
GLASS FLOOR SKYLIGHTS
COMPLETED:
7/29/2019 |
|
 |
CERRITOS
COLLEGE HEALTH &
WELLNESS COMPLEX
11110 ALONADRA BLVD., NORWALK CALIFORNIA
90650
CONTRACTOR:
BEST CONTRACTING, INC.
DESCRIPTION: TWO
48" DIA. CURB MOUNT GLASS FLOOR SKYLIGHTS
ONE 96" DIA. CURB MOUNT GLASS FLOOR
SKYLIGHT
COMPLETED: 03/14/2018 |
PRIVATE
RESIDENCE
BROOKLYN, NEW YORK
CONTRACTOR:
SCM CONSTRUCTION
DESCRIPTION: ONE 4’ x 8’ CURB MOUNT
ALUMINUM GLASS FLOOR SKYLIGHT
COMPLETED: 7/06/2017 |
 |
 |
PRIVATE RESIDENCE
LONG BEACH,
CALIFORNIA
CONTRACTOR:
7 POINT CONSTRUCTION INC.
DESCRIPTION: TWO
4’ x 8’ STAINLESS STEEL
DECK MOUNT
GLASS FLOOR SKYLIGHTS
COMPLETED: 11/07/2017 |
PRIVATE
RESIDENCE
DANA POINT,
CALIFORNIA
CONTRACTOR: SCM
CONSTRUCTION
DESCRIPTION: ONE
4'-10 x 114' GLASS FLOOR SKYLIGHT
COMPLETED:
5/17/2017 |
 |
 |
CISTERCIAN MONASTERY-CRYPT
3580 CISTERCIAN RD, IRVING, TEXAS
CONTRACTOR:
TERRELL GLASS & MIRROR, INC.
DESCRIPTION: ONE
3' X 34' GLASS FLOOR SKYLIGHTS
COMPLETED: 11/17/2017 |
PRIVATE RESIDENCE
NEWPORT BEACH, CALIFORNIA
CONTRACTOR:
SCM CONSTRUCTION
DESCRIPTION:
ONE 3’ x 7’
STAINLESS STEEL
DECK MOUNT LOW
IRON GLASS FLOOR SKYLIGHTS
COMPLETED:
6/08/2017
|
 |
 |
CAMPUS AT
PLAYA VISTA
12126 W. WATERFRONT DR., LOS ANGELES,
CALIFORNIA
CONTRACTOR:
MAFFESSANTI ARCHITECTURE
DESCRIPTION:
FIVE 4’ DIA. CURB MOUNT GLASS FLOOR
SKYLIGHTS
COMPLETED: 10/31/2016 |
PRIVATE RESIDENCE
NEWPORT BEACH,
CALIFORNIA
CONTRACTOR:
QUALITY BUILDERS
DESCRIPTION:
THREE 2’ x 4’ STAINLESS STEEL
DECK MOUNT
GLASS FLOOR SKYLIGHTS
COMPLETED:
2/19/2016 |
 |
 |
PRIVATE
RESIDENCE
SAN FRANCISCO,
CALIFORNIA
ARCHITECT:
COSTA BROWN
ARCHITECTURE
CONTRACTOR: ROBERT LEWIS RENOVATIONS
DESCRIPTION: TWO
2'-9" x 4'-5" CURB MOUNT
ALUMINUM
GLASS FLOOR SKYLIGHTS
COMPLETED:
10/09/2015 |

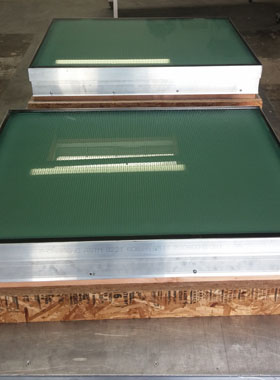

PRIVATE
RESIDENCE
BOSTON,
MASSACHUSETTS
CONTRACTOR:
LEPARD
DESCRIPTION: TWO
3’ x 3’ CURB MOUNT
ALUMINUM & CLEAR
GLASS WALKING FLOOR
COMPLETED:
5/11/2015
|
 |
 |

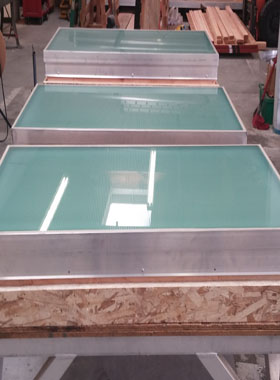

PRIVATE RESIDENCE
ORINDA,
CALIFORNIA
CONTRACTOR:
SCM CONSTRUCTION
DESCRIPTION:
THREE 2’ x 3’ CURB MOUNT
ALUMINUM & LOW
IRON GLASS FLOOR SKYLIGHTS
COMPLETED:
5/11/2015 |
PRIVATE
RESIDENCE
TEMECULA,
CALIFORNIA
CONTRACTOR:
SCM CONSTRUCTION
DESCRIPTION: ONE
4’ x 6’ INTERIOR
ALUMINUM
GLASS FLOOR SKYLIGHT
COMPLETED:
12/19/2013 |
TRUMP
INTERNATIONAL HOTEL WAIKIKI
HONOLULU, HAWAII
ARCHITECT: GUERIN GLASS ARCHITECTS P.C.
CONTRACTOR:
BRETT HILL CONSTRUCTION, INC.
DESCRIPTION: TEN GLASS FLOOR BALCONIES
& HAND RAIL
COMPLETED:
06/06/2013
|
 |
 |
PRIVATE
RESIDENCE
MALIBU,
CALIFORNIA
CONTRACTOR: SCOTT
HALLEY ASSOCIATES, INC.
DESCRIPTION:
THREE 5’ X 18"
STAINLESS STEEL
DECK MOUNT
GLASS FLOOR SKYLIGHTS
COMPLETED:
2/29/2010 |
PRIVATE RESIDENCE
NEWPORT BEACH, CALIFORNIA
CONTRACTOR: ERICK JON BERGER CONSTRUCTION
DESCRIPTION: ONE 5’ x 16’ GLASS FLOOR
SKYLIGHTS WITH RADIUS END
COMPLETED: 5/21/2004 |
 |
 |
PRIVATE
RESIDENCE
NEWPORT BEACH,
CALIFORNIA
CONTRACTOR:
COASTAL HOME CONCEPTS
DESCRIPTION: ONE
12’ x 28’ STAINLESS STEEL
GLASS WALKING
FLOOR BALCONY WITH HANDRAILS
COMPLETED:
8/07/2004 |
PRIVATE RESIDENCE
CORONA
DEL MAR, CALIFORNIA
CONTRACTOR: BROCK
LYSTER CONSTRUCTION
DESCRIPTION: ONE
5’ x 8’ GLASS FLOOR SKYLIGHT
COMPLETED:
2/23/2000 |
|
|
